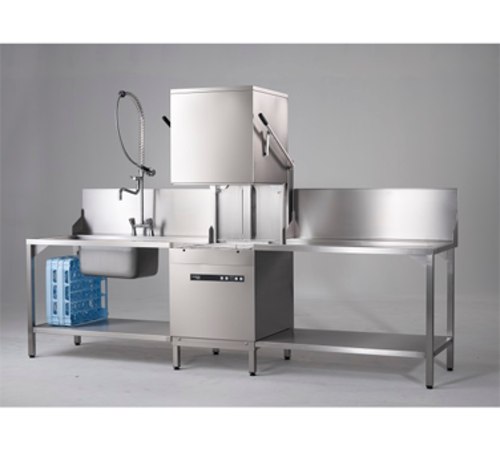

“Model: AUPTW-10B
Capacity: Up to 140 racks per hour
6 programmes – 52, 75, Intensive, ECO, Cutlery & continuous
Electric: 23.5kW (12.4kW booster), 400/50/3ph, 3 x 40 amps
Configurable to 17.3kW (6.2kW booster) 3 x 32amps
Standard features include:-
• Twin rack capacity – doubles the capacity per cycle
• Twin wash systems – two x 1.1kW wash pumps and four wash warms deliver a powerful but balanced wash action
• ‘PERMANENT-CLEAN’ – automatic soil removal eliminates the need for a pre-rinse spray or manual pre-washing and increases the overall efficiency of the system
• Optimised wash and rinse temperature settings – for superior cleaning allowing faster cycles
• Selectable ’Turbo’ wash – increased wash power for utensils and heavy soiling
• Vaporinse’ ultra-low volume steam rinse using just 1.4ltrs per cycle combined with low capacity 80ltr wash tank reduces operating costs by up to 40%!
• Cutlery Cycle – a dedicated cycle with steam which penetrates all areas eliminating shielding and shadow zones
• Heavy Duty Cycle – for heavily soiled ware combining steam and Turbo wash power
• ‘Intensiv’ unique three stage washing process incorporating Genius X² active filter system providing pre-wash, wash & rinsing functions!
• ‘ROTOR X’ wash system – 4 spoke arms delivers a powerful but balanced wash action
• Combi-filter with interlock prevents use of the machine if filters are not in place
• ‘Visiotronic’ single button control with text or symbols for ease of use plus cycle countdown, low salt & chemical warning and on demand temperature indication.
• Intelligent Soil Sensing optimises water usage depending on soil levels in the wash water
• Clip-In Wash & Rinse Arms allow quick & easy removal without fiddly screws or tools
• Hygiene Cycle actively removes tannin, starch and lime deposits from the wash tank, leaves the chamber clean machine with a fresh smell!
• USB Interface allows operational data (HACCP) to be downloaded in a report format
• Integral detergent and rinse aid dosing pumps with level sensing and low level indication
Plus:
o Smooth, counterbalanced hood lift movement with energy saving “park” position
o Large 440mm loading height allowing double racking
o 2 x removable/hinged rack tracks – enables quick and easy removal of wash components for maximum hygiene.
o Integral drain pump and integral rinse booster pump for ease of installation
o Automatic self-flushing cycle when draining
o Class ‘AB’ type air gap
o Flexible hoses for connection to services
o 4 Plate Racks, 1 Cutlery Rack”
